Thinking about a new TV? Before you drill a single hole, use this free TV Screen Size Calculator – Diagonal to Width Converter to convert the diagonal into exact width and height. Getting the math right is the first—and most important—step to a safe, perfectly placed TV.
⚡ Built by John Clay, Retired Builder | 30+ Years Construction Experience | Licensed & Insured Since 2007
You can also see recent projects and reviews on our
South Charlotte Services Google Business Profile
.
TV Screen Size Calculator – Diagonal to Width Converter (Charlotte Edition)
This TV Screen Size Calculator – Diagonal to Width Converter gives you exact screen width and height for any diagonal and aspect ratio, so you can plan consoles, mantels, and wall space without guesswork.
75″
Visual representation updates in real time as you change the diagonal or aspect ratio.
Most Samsung, LG OLED, and Sony Bravia 4K TVs use a 16:9 aspect ratio.
Exact Screen Dimensions
Width
65.4″
Height
36.8″
Pro tip: Add 1–2″ to each dimension for the bezel (frame) around the screen—especially important for tight cabinets or between-wall installs.
For a 75″ TV, I generally recommend a viewing distance of about 10 feet for a comfortable field of view.
Need help mounting it at the perfect height and angle?
Industry guides like
RTINGS TV Size to Distance Calculator
and tools such as
OmniCalculator’s Screen Size Calculator
use the same aspect‑ratio formulas this TV Screen Size Calculator – Diagonal to Width Converter is based on.
Will It Fit Your Space?
Quick Fit Guide for Media Stands, Fireplace Mantels & Wall Space
A common mistake I see as a builder is homeowners buying a TV that’s too wide for their media console or the space between their fireplace mantel and ceiling. Use the width from this calculator to check your console, wall, or over‑fireplace opening before you buy.
✓ Good Fit
TV is 6–12 inches narrower than your media console or mantel. This looks balanced and reduces the chance of bumps or tip‑overs.
✗ Poor Fit
TV is wider than the console or nearly touching trim or stone. Creates an unbalanced, top‑heavy look and can make safe mounting difficult.
Real-World Example:
A 65″ TV (56.7″ wide) fits well on a 60–72″ wide console. An 85″ TV (74.1″ wide) usually needs at least an 80″ console or a wall‑mounted solution with proper studs and anchors.
See the Size Difference
Numbers on paper don’t always help you visualize the real‑world size. Here’s how much bigger a 75″ TV really is compared to a 65″ when you’re planning a Charlotte living room or bonus room.
65″ TV
56.7″ wide
Most popular size
75″ TV
65.4″ wide
Nearly 9″ wider
That extra 10 inches diagonal translates to almost a foot more width. Always verify with this calculator before you commit to a 75″ or 85″ in a smaller Charlotte room.
How to Use This TV Screen Size Calculator
This TV Screen Size Calculator – Diagonal to Width Converter is designed so you don’t need to know any formulas. Just enter the diagonal, and it instantly gives you usable width and height for real‑world mounting decisions.
Find Your TV Size
Check the box, manual, or model number. The diagonal is usually in the name (like “Samsung 65‑inch” or “LG OLED 77”).
Enter It Here
Use the slider or type the diagonal. Pick the aspect ratio (16:9 for most 4K TVs), and the calculator instantly shows exact width and height.
Plan Your Mounting Safely
Use the width and height to check console size, fireplace opening, stud locations, and safe mounting height before you drill.
Common TV Sizes at a Glance (16:9)
If you just need a quick reference instead of using the slider, this TV Screen Size Calculator – Diagonal to Width Converter also doubles as a TV screen size chart, showing width, height, recommended stand dimensions, and viewing distance for the most popular 16:9 TV sizes.
| Diagonal Size | Width (inches) | Height (inches) | Recommended Stand Width | Viewing Distance |
|---|---|---|---|---|
| 43″ | 37.5″ | 21.1″ | 44–55″ | 5–6 feet |
| 55″ | 47.9″ | 27.0″ | 54–66″ | 7–8 feet |
| 65″ | 56.7″ | 31.9″ | 63–75″ | 8–10 feet |
| 75″ | 65.4″ | 36.8″ | 72–84″ | 9–12 feet |
| 85″ | 74.1″ | 41.7″ | 81–93″ | 10–14 feet |
TV Mounting Height Calculator: How High Should You Mount It?
Once you know your TV’s exact height, you can estimate a safe mounting height. The goal is to keep the center of the screen close to eye level when seated to reduce neck strain and give you a comfortable viewing angle.
Simple Rule of Thumb for Living Rooms
- Measure your seated eye height from the floor (usually 40–42″ for most adults on a sofa).
- Use the calculator’s screen height and aim to place the center of the TV at about that eye height.
- For most 55–75″ TVs in Charlotte living rooms, this puts the TV center roughly 40–48″ from the floor.

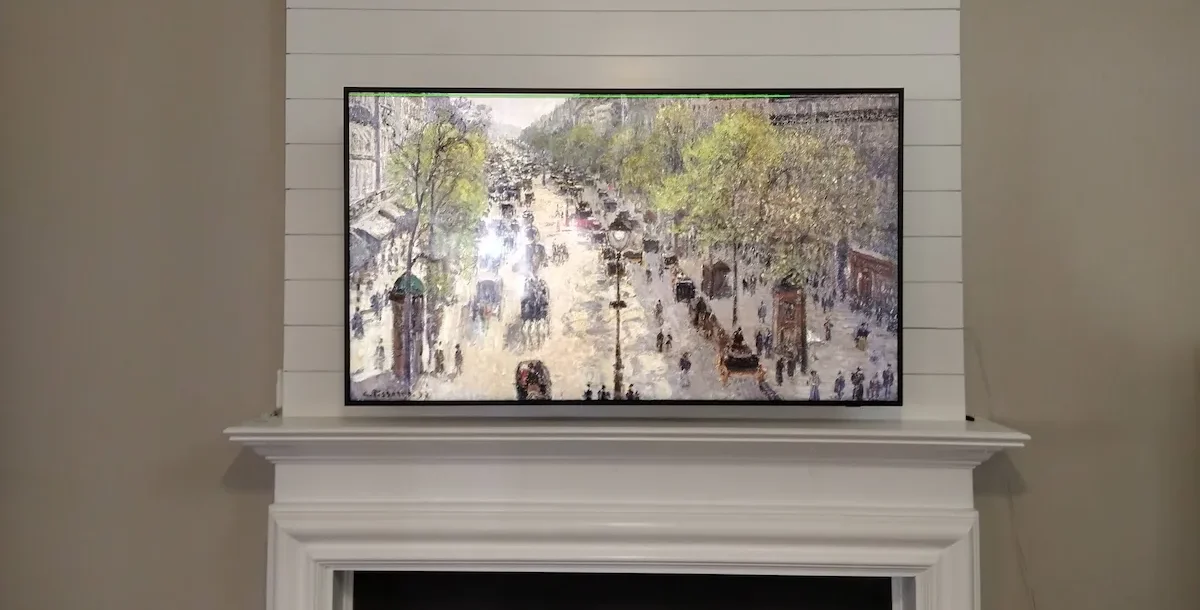

Builder’s note: Over fireplaces, we often have to mount higher than ideal eye level. In those cases, a tilting or full‑motion mount can angle the TV down to reduce neck strain and glare while staying inside local code clearances for mantels and combustibles.
Builder’s Tips: Beyond the Math
Don’t Forget About the Bezel
The screen size is just the display. Most TVs have a 0.5–1.5 inch bezel (frame) around the screen. If you’re mounting in a tight cabinet, between built‑ins, or over a stone fireplace in South Charlotte or Waxhaw, measure the actual TV, not just the diagonal on the box.
Check Your VESA Mount Pattern
Larger TVs (65″ and up) typically use VESA 400×400 or 600×400 patterns. Always confirm your wall mount bracket matches the TV’s VESA pattern and weight rating before you buy, especially for LG OLED, Samsung Frame, and Sony Bravia models.
Measure Your Wall Space Twice
In Charlotte’s mix of brick, stone, and drywall homes, I’ve seen plenty of jobs where a TV was too tall for the space between a fireplace mantel and the ceiling. Measure the mantel‑to‑ceiling height and compare it to the screen height from this calculator before choosing a 75″ or 85″.
Got Your Measurements? Let’s Mount It Right.
Over 30 years, I’ve mounted hundreds of TVs in Charlotte and Union County homes. Get it done safely, at the perfect height, with a Lifetime No‑Fall Guarantee on every structural TV wall mount.
★★★★★ Rated 4.9/5 by 300+ Charlotte homeowners • Same‑day service often available
Common Questions About TV Screen Sizes
TVs are measured diagonally from one visible corner of the screen to the opposite corner, not including the bezel or frame. If you run a tape from the top‑left of the lit picture to the bottom‑right, that diagonal in inches is the advertised size (like 55″, 65″, or 75″).
The screen size is just the viewing area measured diagonally, while the total TV size includes the bezel and frame around it. For tight cabinets, between‑wall installs, or built‑ins, always measure the full width and height of the TV, not just the diagonal.
On a standard 16:9 TV, a 65″ screen is about 56.7 inches wide and 31.9 inches tall. By the time you add the bezel, the real‑world width is usually closer to 57–58 inches, which is why it’s smart to leave a little extra space on your console or wall.
For modern 4K TVs, a good rule of thumb is to sit about 1 to 1.5 times the screen diagonal away, which keeps the viewing angle comfortable without showing pixels. In plain terms, a 65″ TV is comfortable at around 8–10 feet, and a 75″ TV feels right at roughly 9–12 feet for most Charlotte living rooms.
A 75″ TV usually makes sense if you can sit at least about 9 feet back and up to around 12 feet for a more relaxed feel. If your sofa is closer than 8 feet, many homeowners find a 65″ a better balance between immersion and comfort, especially in smaller South Charlotte and Matthews family rooms.
As a rule, you want your TV to be at least a few inches narrower than your stand on each side—ideally 6–12 inches narrower overall so it doesn’t look top‑heavy. If the TV width is equal to or wider than the console, it can look awkward and may be easier to bump or tip.
Yes. After you use this TV Screen Size Calculator – Diagonal to Width Converter, I can help you double‑check your measurements on‑site and pick a safe mounting height, bracket, and wiring plan for your wall type. As a retired builder with 30+ years of experience in Charlotte and Union County, my goal is to make sure the TV fits your room, your furniture, and your family’s needs perfectly.
